This product have four normally open contact, for electric tricycle, electric machinery and equipment, recreational vehicles, floor sweeper, system, ceramic machine, throwing cars, brick car, clean cars, solar boats
FEATURES:

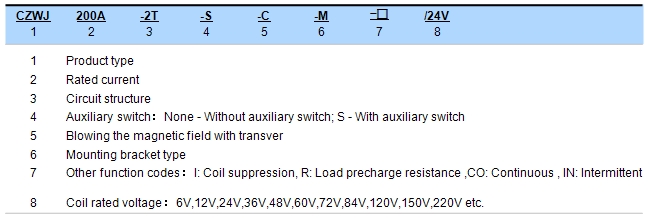

SAYOON MODEL IMPLICATION:
USES:
This product have four normally open contact, for electric tricycle, electric machinery and equipment, recreational vehicles, floor sweeper, system, ceramic machine, throwing cars, brick car, clean cars, solar boats
TECHNICAL PARAMETERS: (Version 1.47)
SAYOON Product Type | CZWJ200A-2T |
| Contact form | 4 NO |
| Coil Rated voltage(DC V) | 6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc. |
| Contact voltage(DC V) | ≤80V |
| Rated load current of contact 48V circuit (DC-1) | 200A |
| Typical voltage drop across contacts per 100A | ≯80mV |
| the cooling pull-in voltage at (20±5)℃ (V) | ≯70% |
| the cooling drop-out voltage at (20±5)℃(V) | ≯35%,≮5% |
| Working voltage range of 40 degrees celsius coil | 0.8-1.2Us |
| Drop-out time(n/o contacts to open) | 40ms |
| Pull-in time (n/o contacts to close) | 12ms |
| connect the maximum contact bounce time | 10ms |
| Disconnect the maximum contact bounce time | 3ms |
| Insulation resistance | 20MΩ |
| Electric strength to resist | 50Hz/60Hz 1000VAC 1minute |
| Typical fault currents which can be ruptured | 800A/5ms at 48V DC |
| Coil power (W) | 20-35 |
| Temperature rise of coil (K) | ≤80 |
| Temperature rise on outgoing terminal (K) | ≤65 |
| Electric life | 20000 times |
| Mechanical life | 300 thousand times |
| Work specification | Continuous or Intermittent(default) |
| Contact material | Ag alloy |
| Load terminal type | M8 Rose |
| Coil terminal type | 6.3mm spade terminals |
| Auxiliary contact rated load (choose) | 2A/48VDC, 5A/24VDC |
| Testing organization certification | CE,FCC |
LOAD CHARACTERISTIC CURVE:
INSTALLATION DIAGRAM:
WIRING DIAGRAM:
OTHER WIRING DIAGRAM:
 |
COIL TEMPERATURE CURVE:
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Contact lead M8 tightening torque(N.m) | ≯9.0 appropriate |
| Coil lead-out torque (N.m) | ≯0.8 appropriate |
| Ambient temperature | -25~+70℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1～50Hz amplitude 0.5mm |
| concussion | (60～100) time/minute、Acceleration≤4g |
| Altitude | 2000米 |
| Installation direction | Random |
| International protection | IP40 (According IEC60947) |
certification：
PRODUCT PICTURE:
DOWNLOAD DATA:
Tips: if you want to understand the technical details of parameters more SAYOON CZWJ200A-2T DC Contactor, other SAYOON or the product of information, please visit SAYOON electric official website www.djdjo.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
