Control of brush motors, series motors, potentiometers control for the electric four-wheel vehicles, golf carts, recreational vehicles, tour buses, tourist car
SAYOON MODEL IMPLICATION:
USES:
Control of brush motors, series motors, potentiometers control for the electric four-wheel vehicles, golf carts, recreational vehicles, tour buses, tourist car
TECHNICAL PARAMETERS: (Version 1.37)
SAYOON Product Type | SDZ |
| Rated power | 3000W;4000W;5000W;6000W;8000W;10KW |
| Rated voltage | 12V;24V-36V;48V-60V;72V;84V;96V |
| Rated current(A) | 100A;130A;160A;200A;260A;330A |
| Throttle signal types | 0.8-4.2V; 0-5V; 0-5k |
| Effective control of voltage range (V) | 1.5-3.4V |
| Rated power loss | ≤5W |
| Throttle interface type | Three-wire 6.3 insert(default) |
| Testing organization certification | CE,FCC |
INSTALLATION DIAGRAM:
WIRING DIAGRAM:
PLUG TYPE:
 |  |
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Ambient temperature | -30~+85℃ |
| Relative humidity | +20℃ 98% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP55 |

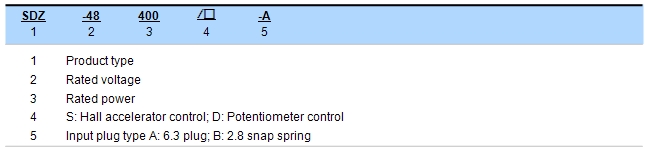

ORDER INSTRUCTION:
SAYOON Product Type | SDZ |
| U.N.W. | 1784g |
certification：
PRODUCT PICTURE:
DOWNLOAD DATA:
| No. | Download |
| 1 |  SDZdatasheet |
| 2 | DC Contactor Technical Applications Form for PDF/ DC Contactor Technical Applications Form for XLS |
| 3 | Mini PDF Reader1 for WinXP/ Mini PDF Reader1 for Win7 / Adobe Reader |
Tips: if you want to understand the technical details of parameters more SAYOON SDZ Brush DC Motor Controller, other SAYOON or the product of information, please visit SAYOON electric official website www.djdjo.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
