Control of brush motors, series motors, potentiometers control for the electric four-wheel vehicles, golf carts, recreational vehicles, tour buses, tourist car
FEATURES:
With reversing function as one of the assembly controller
SAYOON MODEL IMPLICATION:
USES:
Control of brush motors, series motors, potentiometers control for the electric four-wheel vehicles, golf carts, recreational vehicles, tour buses, tourist car
TECHNICAL PARAMETERS: (Version 1.43)
SAYOON Product Type | ZC1 |
| Rated power | 2200;3000W;4000W;5000W;6000W;8000W;10KW |
| Rated voltage | 12V;24V-36V;48V-60V;72V;84V;96V |
| Type of throttle control | Foot throttle,Hand throttl,Resistance throttle |
| Throttle signal types | 0.8-4.2V; 0-5V; 0-5k |
| Rated power loss | ≤50W |
| Plate size | 333*250*5 |
| Testing organization certification | CE |

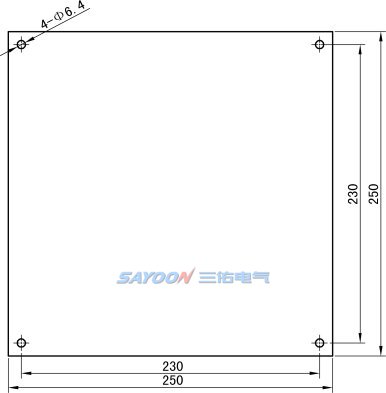

INSTALLATION DIAGRAM:
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Ambient temperature | -30~+50℃ |
| Relative humidity | +20℃ 98% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
PRODUCT PICTURE:
DOWNLOAD DATA:
| No. | Download |
| 1 |  ZC1datasheet |
| 2 | DC Contactor Technical Applications Form for PDF/ DC Contactor Technical Applications Form for XLS |
| 3 | Mini PDF Reader1 for WinXP/ Mini PDF Reader1 for Win7 / Adobe Reader |
Tips: if you want to understand the technical details of parameters more SAYOON ZC1 Assembly, other SAYOON or the product of information, please visit SAYOON electric official website www.djdjo.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
