FEATURES:

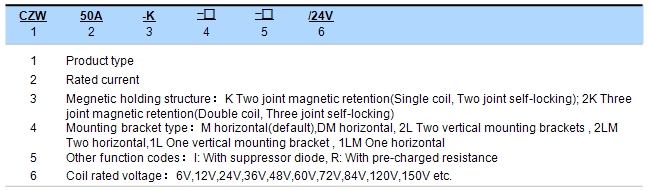

SAYOON MODEL IMPLICATION:



USES:

This product realizes zero power connection when working. It is suitable for 5G、charging pile, telecommunication communication equipment, automation equipment, electric vehicle, energy-saving and environmental protection system, road traffic lighting system, programmable power supply and uninterrupted power supply equipment.



TECHNICAL PARAMETERS:  (Version 1.48)

SAYOON Product Type	CZW50A-K
Contact form	1 Circuit
Coil Rated voltage(DC V)	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V etc.
Contact voltage(DC V)	≤80V
Rated load current of contact 48V circuit (DC-1)	50A
Typical voltage drop across contacts per 100A	≯80mV
the cooling pull-in voltage at (20±5)℃ (V)	≯80%
the cooling drop-out voltage at (20±5)℃(V)	≯80%
Working voltage range of 40 degrees celsius coil	0.8-1.2Us
Pulse dration	200ms≤t≤1s
Operating frequency(square wave)	1 minute≤6 times
Insulation Resistance	100MΩ
Electric strength to resist	50Hz/60Hz 2200VAC 1minute
Typical fault currents which can be ruptured	800A/5ms at 48V DC
Coil power (W)	K Start: 5-10，keep: 0
Temperature rise of coil (K)	Normal temperature
Temperature rise on outgoing terminal (K)	≤65
Electric life	10000 times
Mechanical life	300 thousand times
Work specification	Continuous
Contact material	Ag alloy
Load terminal type	M6 Rose
Coil terminal type	6.3mm spade terminals
Auxiliary contact rated load (choose)	2A/48VDC, 5A/24VDC
Testing organization certification	CE,FCC,CCC

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The above parameters are for reference only, For details, please refer to the guidelines for selection and use of the SAYOON DC contactor.



LOAD CHARACTERISTIC CURVE:





INSTALLATION DIAGRAM:







WIRING DIAGRAM:



OTHER WIRING DIAGRAM:

MECHANICAL ABILITY and USE of the ENVIRONMENT:

Contact lead M6 tightening torque(N.m)	≯4.5 appropriate
Coil lead-out torque (N.m)	≯0.8 appropriate
Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
concussion	(60～100) time/minute、Acceleration≤4g
Altitude	2000米
Installation direction	Random
International protection	IP40 (According IEC60947)





ORDER INSTRUCTION:

SAYOON Product Type	CZW50A-K
U.N.W.（Includes Horizontal frame）	194g
Mounting bracket type	1L One vertical mounting bracket (default), 2L Two vertical mounting brackets, 1M One horizontal , 2M Two horizontal

When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: Magnetic Holding DC Contactor CZW50A-K/24V 100pcs, indicating the load rated current 50A, without auxiliary contact, default mounting bracket, coil control voltage 24V purchase 100pcs. Special voltage specification products, such as user needs can be special order.



certification：













PRODUCT PICTURE:







DOWNLOAD DATA:

No.	Download
1	CZW50A-Kdatasheet
2	DC Contactor Technical Applications Form for PDF/ DC Contactor Technical Applications Form for XLS
3	Mini PDF Reader1 for WinXP/ Mini PDF Reader1 for Win7 / Adobe Reader



Tips: if you want to understand the technical details of parameters more SAYOON CZW50A-K Magnetic Holding DC Contactor, other SAYOON or the product of information, please visit SAYOON electric official website www.djdjo.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD.  will welcome your arrival.
