SAYOON MODEL IMPLICATION:



USES:

For manual speed electric vehicles, electric tricycles, trucks, recreational vehicles, classic cars, brick cars, solar boats



TECHNICAL PARAMETERS:  (Version 1.38)

SAYOON Product Type	ZB01
Input voltage	5V
Output	0.8-4.2v
Output rated load current	10mA
Output type	Positive control
Wire length	2200 mm

Note: The main components of this product use Hall sensors and strong magnets, and interference caused by environmental electromagnetic waves and temperature should be avoided as much as possible during use. If used as signal sampling, it should be filtered before use. Please refer to the Hall parameters for the tolerance of the product output. If there are any selection issues, please contact our technical personnel.



INSTALLATION DIAGRAM:



WIRING DIAGRAM:



OTHER WIRING DIAGRAM:

MECHANICAL ABILITY and USE of the ENVIRONMENT:

Ambient temperature	-30~+85℃
Relative humidity	+20℃ 98%
the vibration frequency of the fixed	3G, 1 ~ 50Hz 0.5mm amplitude
Altitude	2000m
Installation direction	Random
International protection	IP64





ORDER INSTRUCTION:

SAYOON Product Type	ZB01
U.N.W.	229+153g
Package QTY.	100 Pay
Meas.(cm)	50*40*40
G.W.	25kg
N.W.	23kg

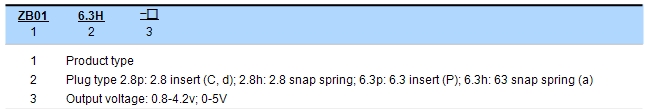

Please specify the following information when placing an order: name, complete model, and quantity ordered. For example: ZB01-2.8P 100 pieces. Special output voltage specification products can be ordered by users if needed.





PRODUCT PICTURE:





DOWNLOAD DATA:

No.	Download
1	ZB01datasheet
2	DC Contactor Technical Applications Form for PDF/ DC Contactor Technical Applications Form for XLS
3	Mini PDF Reader1 for WinXP/ Mini PDF Reader1 for Win7 / Adobe Reader



Tips: if you want to understand the technical details of parameters more SAYOON ZB01 Hand Throttle, other SAYOON or the product of information, please visit SAYOON electric official website www.djdjo.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD.  will welcome your arrival.
